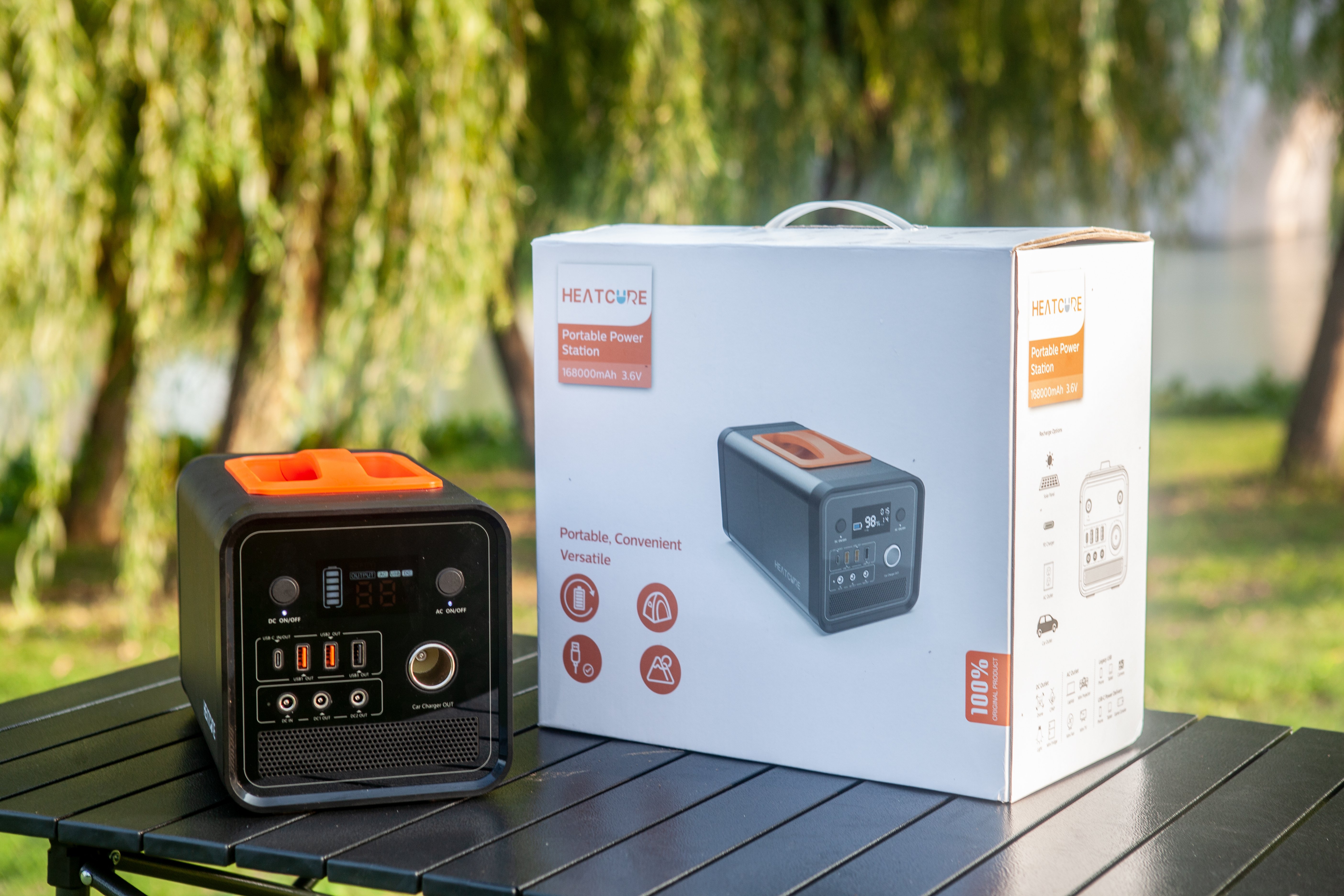

600W Portable Power Station 604wh Extra Capacity UL Tested FCC Certified Product Insurance Coverage $2m
1.HEATCURE Portable Power Station 600W,604.8Wh Backup Lithium Battery with 110V/600W(Peak 1000W/3S) 4 AC Output/1 Car Charger Output/2 DC Ports/3 USB-A Ports/1 TYPE-C Port, Emergency Generator for Outdoors RV Camping(solar panel is not included).
Details:
Product introduction
HEATCURE Portable Power Station 600W,604.8Wh Backup Lithium Battery with 110V/600W(Peak 1000W/3S) 4 AC Output/1 Car Charger Output/2 DC Ports/3 USB-A Ports/1 TYPE-C Port, Emergency Generator for Outdoors RV Camping(solar panel is not included).
1.Capacity: Highest capacity per dollar* (604.8Wh) for similar range of competitors in market
2.Power: 600W output power, optimized for day-to-day extensive camper and outdoor needs
3.Output: Outstanding multi tasking capability (highest number of output)
4.Safety: UL standard tested, FCC certified, Product insurance coverage $2M, extra safety engineered product by China pubic listed manufacturer with about 30 years of battery experience
Technical Features
1.All DC transformations use synchronous rectification technology, including charging, USB, QC, TYPE-C (PD).
2.AC applies pure sinusoidal wave,so as to provide better power quality for AC power equipment (have 2 fans).
3. Adapter charging, 19V and 4.72A, the power can reach 90W Max .
4.BMS has over temperature protection, over voltage protection, over current protection, software balance, SOC measurement, and other functions, which can guarantee the stable and reliable operation of battery.
5. In complete power-down mode, the whole system is shut down. The power consumption of the whole system is less than 0.8ma.
6.The design of uniform internal resistance, such as Voltage balancing management of battery module, ensures the uniform use of electric core Voltage,thus prevents uneven attenuation, and extends the service life of battery module .
7.Product service life: can be recycled for 300-600 times.1.All DC transformations use synchronous rectification technology, including charging, USB, QC, TYPE-C (PD).
Product Parameters
Spec.: 3.6V@ 168000mAh,604.8Wh
Battery pack self discharge current: <0.8mA
Adapter charge(DC6530Input): 90W Max(16V-19V)
Solar panel charging/ (DC6530Input): 90W Max(14V-32V)
TYPE C-PD(Input&Output): 5-20V 60W Max
USBA1 or USBA2(Output): 5-12V 18W Max (QC3.0)
USBA3(Output) 5V 12W Max
4*AC(Output): 110V 60Hz 600W Max
DC1/DC2(Output): 12V 10A
Car Charger Output: 12V 10A
LED: 3W
Over-discharge protection(BMS) : YES
Over-charge protection(BMS): YES
Optimum discharge temperature: -10ºC-40ºC
Optimum charge temperature: 0ºC-40ºC
Over current protection(BMS): YES
Short circuit protection(BMS): YES
Weight: ~6.3kg
(L×W×H)Size: 28.8*16*18.15cm
Color: Black/Orange
Functions (how to use different kind of input and output?)
1. Solar energy , adapter and car plug - 3 types of input options available.
2.Covers majority of USB charging device (mobile phone, pad, camera,etc.)
3. Providing USB QC3.0 port which supports QC fast charge protocol (mobile fast charge)
4. Providing TYPE-C, 60W, PD protocol, which directly adapts to PD protocol laptop power supply
5.DC 12V output port is provided for outdoor charging of drones, RC airplanes, etc.
6.AC 110V port can supply power to most small and medium-sized household appliances (TV, electric fan, indoor lighting,etc.)
7. Built-in LED lighting, providing four modes of low brightness, high brightness, SOS, and flash.
Component Details
1 Power Station 1
2 USB Wire 1
3 19V 4.72A Adapter 1
4 Instruction Book 1
